Breadboard Power Supply Module in Pakistan

Breadboard Power Supply Module pakistan By completing this kit user of breadboard power supply module will get useful Breadboard power supply with 3.3V 5V or adjustable output modes which are selected by sliding switch. Also user will learn how switching mode power supply Buck converter works. Switching mode power supply is much more efficient and have wider range of input voltages than linear regulator. Input voltage of this module is 10-24V DC (Recommended 18V wall power supply) (Power Jack with positive center pin) Maximum current at output of this power supply is 650mA and no heat sinks are needed. Module also have adjustable voltage output in ranges between 1.8-12 Volts but in that case input voltage should be in range from 18 to 24 Volts, maximum output current in adjustable mode is 500mA. If 10 Volts are applied on input – output voltage can be adjusted in range from 1.8V to 6V, maximum upper voltage level in adjustable mode is increased as input voltage increases. 3.3V 5V and adjustable modes are selected with three position slide switch, in adjustable mode voltage is adjusted with potentiometer. Distance between closer pins on headers on opposite sides used for Breadboard inserting is 1.7 Inches (43.18 mm) and they fit on breadboard: Jameco Part no. 2212218 and any other breadboard which is built on that standard. Module can’t be inserted on some Breadboards so header on one side (Vout R or Vout L) should not be soldered if this module is used on that Breadboard with different dimensions between power rails. PCB dimensions are 67 x 43mm (2.64 x 1.69 Inches) This module will ideally work with 18V DC power supply adapter. Possible adapter solution is Jameco Part no. 2102060 with Interchangeable AC plugs (plug kits sold separately) AC-Plug-US, USA AC plug, Jameco P/N: 2082353. By liking Our Facebook Page Embeded Studio , you can get special discount. Data Sheet of Breadboard Power Supply Module can be also downloaded from the link

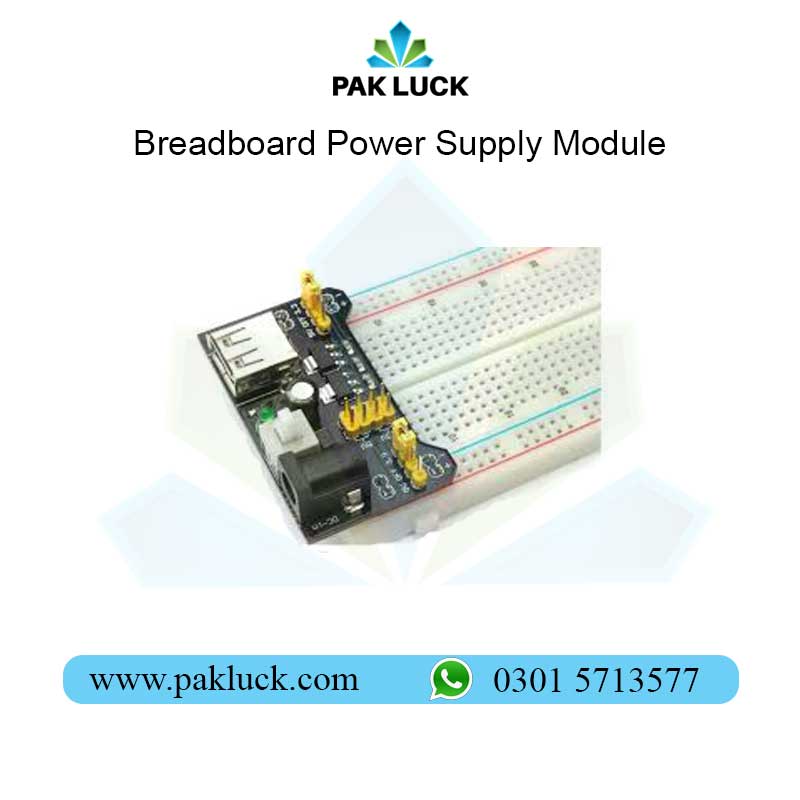

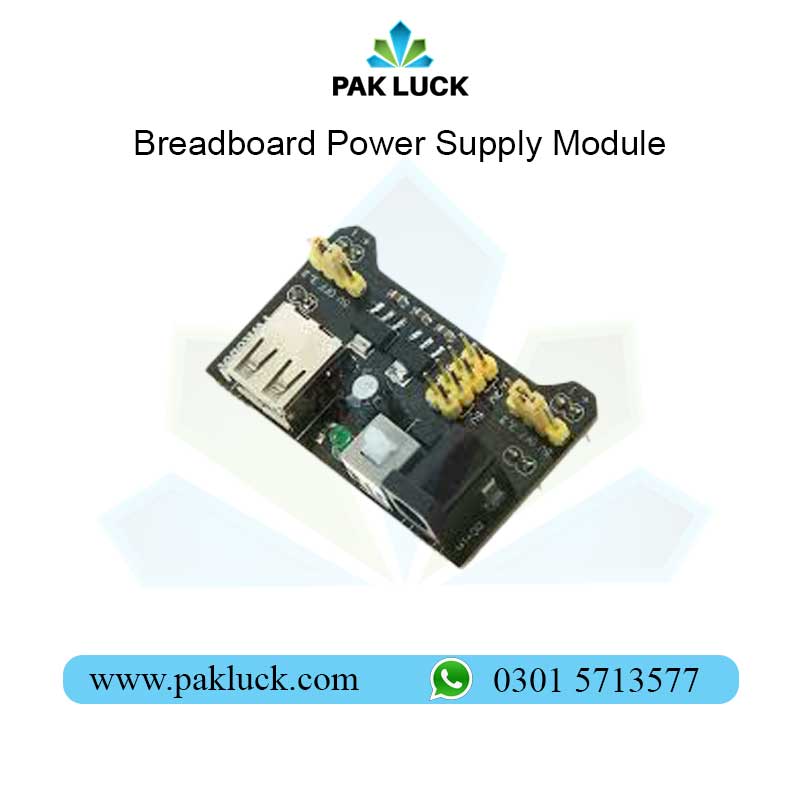

This solderless breadboard Power Supply Module makes powering your prototype a snap. With a standard 2.1mm barrel jack you can power it with a 9v battery using a snap-on connector or a wall-wart. With a convenient ON/OFF button switch with indicator LED you don’t have to keep plugging in and unplugging your power source. The rails are powered separately so you can have one side as 3.3v and the other as 5v. There is also an off position for the jumper to break the circuit and not power the rail at all. The board has a 2 x 4 group of male headers with 2 sets for 3.3v to GND and 2 sets for 5v to GND. One of our favorite features is the USB-A port to plug in your USB powered dev boards like an Arduino. This gives the added benefit of tying the breadboard ground to the dev boards ground as well. There is a nice feature set in this little board and it’s a real time saver for a power supply module. Listing is for 1 breadboard power supply. Breadboard not included.

Specifications:

• Input voltage: 10-24VDC, recommended 18V wall power supply (Power Jack)
• Output voltage: 3.3V/5V/Adjustable 1.8-12V
• Output current: 650mA
• Pin Headers for input and output
• Central positive DC 2.1 power jack for input
• Size: 2.64″ x 1.69″

Features

• Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V.
• On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
• Fit: Arduino Board Solderless Breadboard.
• Include:6x Breadboard Power Supply Module.
• Brand New and High Quality.Buy with confidence,If there are quality problems, the seller promised no reason to return.
