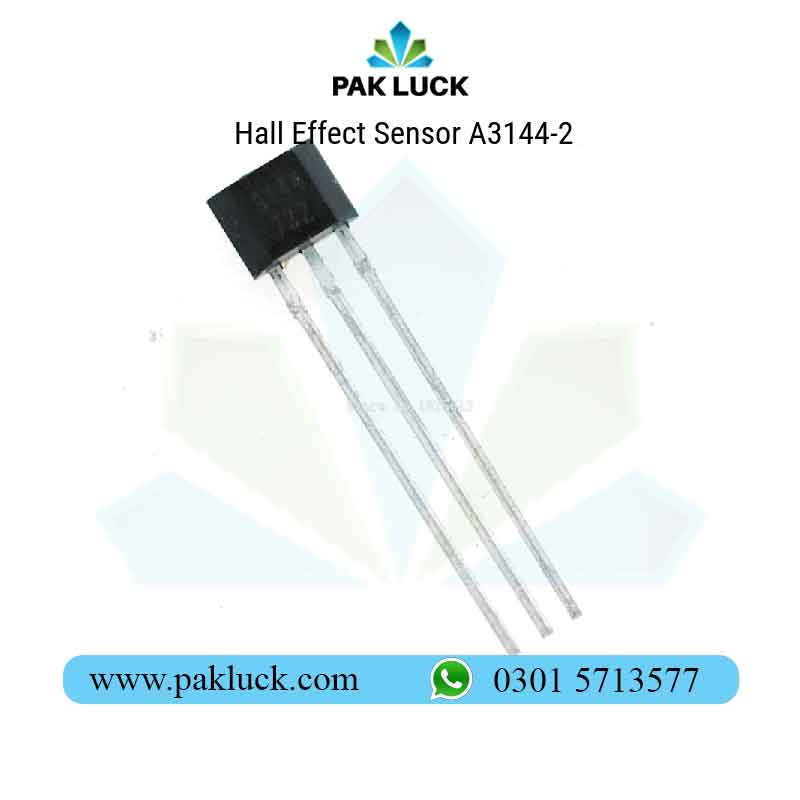

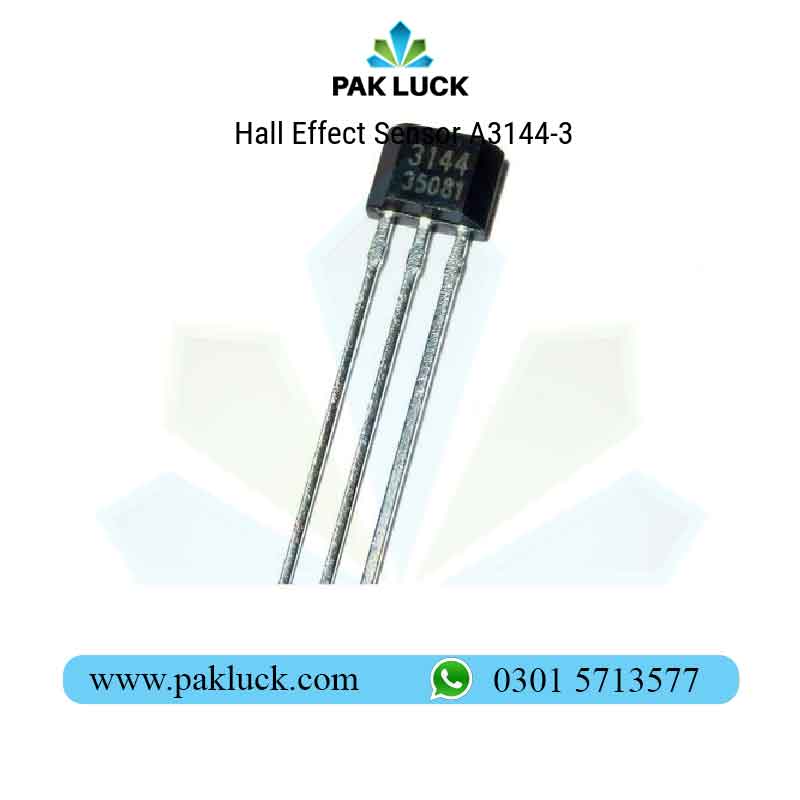

Hall Effect Sensor A3144
Original price was: ₨ 120.₨ 100Current price is: ₨ 100.
- Size: approx. 1.85 x 0.3cm/ 0.73″ x 0.12″
- Limit parameter (25 )
- Power supply voltage VCC: 24V
- Output reverse breakdown voltage Vce: 50V
- Output low current IOL: 50mA
- Storage temperature range TS: -65 ~ 150
- Operating temperature TA : E :-20 ~ 85 , L:-40 ~ 150
- This sensor has 3 pins
| Weight | 0.25 kg |
|---|
48 in stock
Description
Hall Effect Sensor A3144 Price in Pakistan
Hall Effect Sensor A3144 element 44E OH44E principle of Hall effect switch IC, the use of magnetic semiconductor integrated circuit manufacturing technology, which is determined by the voltage regulator, Hall-voltage generator, differential amplifier, Schmitt trigger , temperature compensation circuit and open-collector output stage consisting of magnetic sensing circuit, Works with input magnetic induction and the output is a digital voltage signal.
Hall effect sensor is very popular in magnetic field detection. This sensor module comes with the basic circuitry to help you get started. Power it with 5VDC and you will get a hall effect sensor, there are two output, digital and analog. Compatible with most of microcontroller such as Arduino/Genuino UNO, Mega, CT-UNO, CT-ARM, Raspberry Pi, and more.
Product Features:
small size, high sensitivity, fast response and good temperature performance, high accuracy, high reliability.
Typical Applications:
Non-contact switch, auto ignition, brake circuit, position, speed detection and control, security alarm devices, textiles control systems etc.
Limit parameter @( 25°C):
Power supply voltage VCC 4 to 24V
Output reverse breakdown voltage Vce = 50V
Output low current IOL = 50mA
Ambient temperature TA = E profile : -20 ~ 85°C , L profile : -40 ~ 150°C
Storage temperature range TS = -65 ~ 150 °C
Output reverse breakdown voltage Vce = 50V
Output low current IOL = 50mA
Ambient temperature TA = E profile : -20 ~ 85°C , L profile : -40 ~ 150°C
Storage temperature range TS = -65 ~ 150 °C
Package Included:Â Â Â Â Â Â Â Â Â Â
- 1x Hall Effect Sensor A3144
