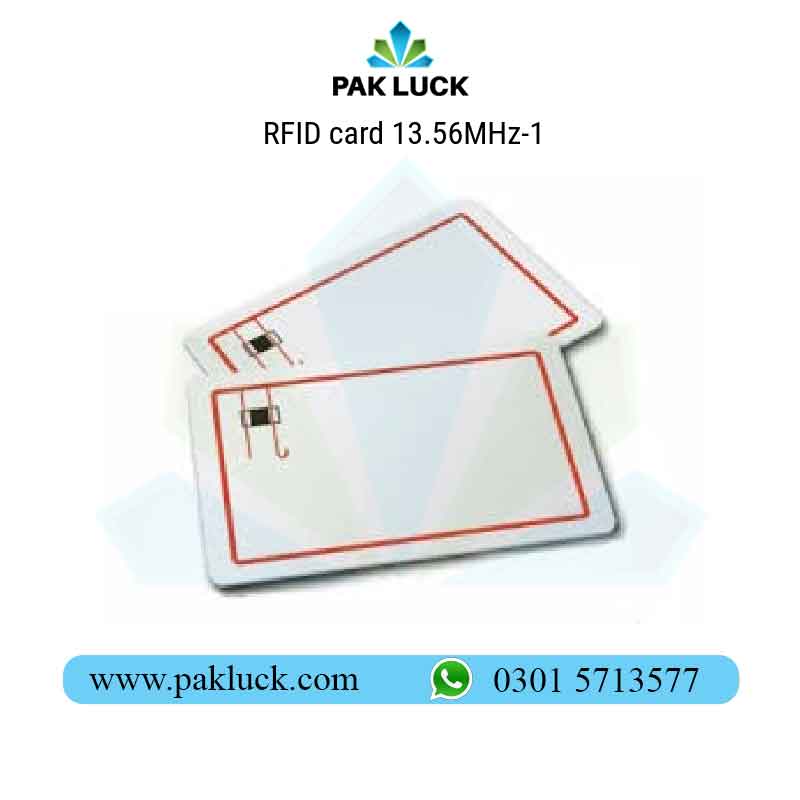

13.56MHz Attendance Secure Verification RFID Tag Card in Pakistan

13.56MHz Attendance Secure Verification RFID Tag Card is used for Contactless transmission of data. This RFID Tag Card supplies energy with no battery needed. Its Operating distance is Up to 1 Meter depending on antenna geometry. Operating frequency is 13.56MHz and Data transfer speed is 106 kbit/s. It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti-collision.
These cards are typically used in ticketing transaction: Typical response time is <100 ms including backup management.

Features:

1. Highly integrated analog circuitry to demodulate and decode responses
2. Supports ISO/IEC14443A/MIFARE
3. Typical operating distance in Reader/Writer mode for communication to a ISO/IEC14443A / MIFARE is 40~50 mm
4. Supports MIFARE Classic encryption in Reader/Writer mode
5. Supports ISO/IEC14443A higher transfer speed communication up to 848kbit/s
6. Control by Serial UART interface: Baud rate could be 2400bps ~ 115200bps, with default baud rate 9600bps
7. With the chip ISO14443, it supports MIFARE standard encryption algorithm
8. Configuration data is preserved in EEPROM against power cut off
9. Built-in 8K EEPROM, easy to access it by sending commands
10. Easy to use, by sending simple commands users can control it to read or write cards
11. In compact command, command is as short as one byte
12. Excellent EMC performance

EEPROM

1. 1Kbit, organized in 16 sectors, each district two passwords
2. User-definable access conditions for each memory block
3. Data retention of 10 years.
4. Write endurance 100 000 cycles

Security

1. Individual key set per sector (per application) to support multi-application with key hierarchy
2. A unique serial number for each device
3. Transport key protects access to EEPROM on-chip delivery

Specifications of 13.56MHz Attendance Secure Verification RFID Tag Card:

Applications:

1. Public transportation
2. Access control
3. Event Ticketing
4. Gaming & identity
