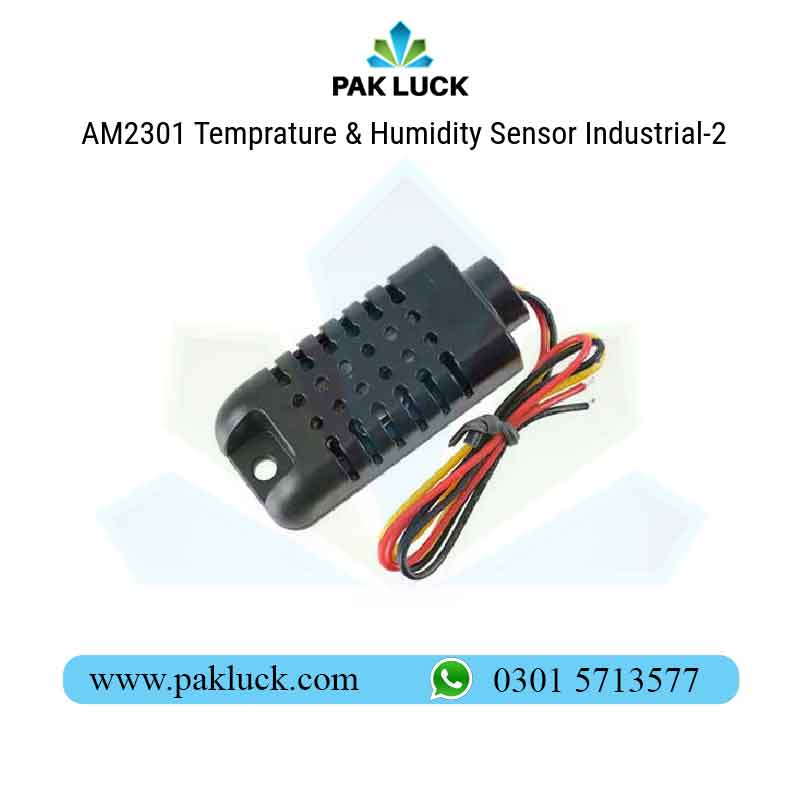

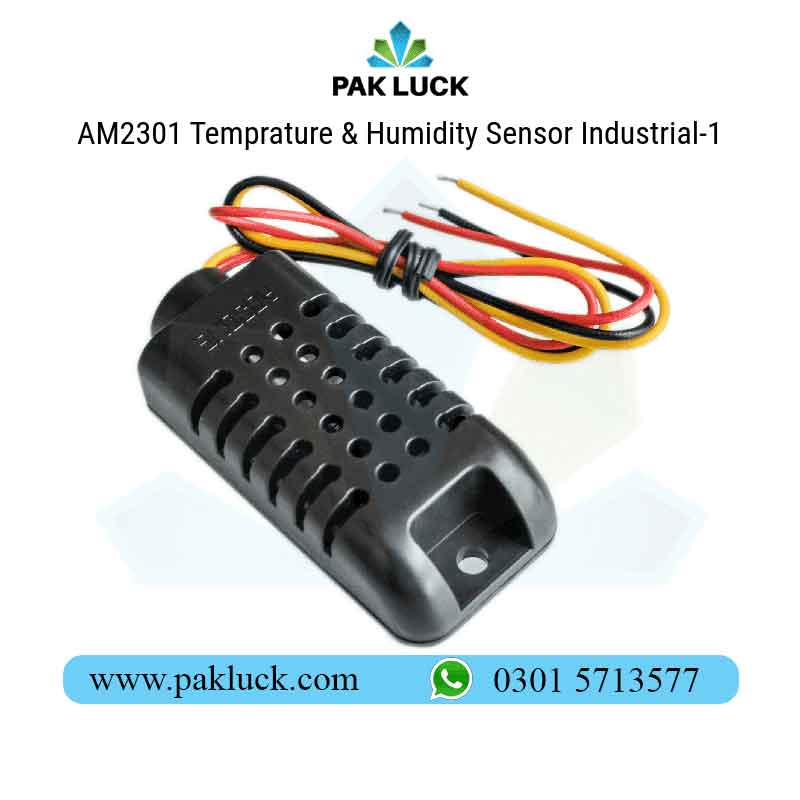

AM2301 Temperature & Humidity Sensor Industrial

AM2301 Temperature & Humidity Sensor Industrial Price in Pakistan

The AM2301 or also known as DHT21 digital temperature sensor is one of the common from the range of DHT Temperature & Humidity sensors and boasts a relatively high temperature measurement accuracy of ±0.3℃ better compared to the DHT11 or DHT22 and with a relative humidity accuracy of +/- 3%. It has only 3 wires, including power and ground, meaning only one digital pin is required to interface it to a microcontroller.

For Arduino development platforms the sensor is very well supported by the DHT library available from the Arduino Playground website.

Detailed Description:
AM2301 is a digital temperature and humidity sensor module made using a capacitive humidity sensor, a high precision temperature sensor and an 8 bit microcontroller. Former name of this sensor was DHT21. This module provides extremely accurate outputs as it is digitally calibrated using the coefficients stored in the microcontroller. It has a wide operating voltage range, 3.3V ~ 5.2V makes its interface easy with a wide variety of devices. AM2301 sensor module can be easily interfaced with Arduino Boards, Raspberry Pi and other microcontroller units with its single bus interface.

DataSheet:

Features:

• Ultra low power
• Fast response
• Relative humidity and temperature measurement
• Full range temperature compensation
• Excellent long term stability
• Long transmission distance
• High accuracy
• No need of extra components
• Excellent long term stability
• Calibrated digital output

Pin Out

• PIN No. Color Name Description
• Red VDD Power (3.3V ~ 5.2V)
• Yellow SDA Serial Data, Dual Port

Black GND Ground

Applications:

• HVAC (Heating, Ventilating and Air Conditioning)
• Dehumidifier
• Testing and inspection equipment
• Home appliances
• Data loggers
• Humidity regulator
• Weather stations

Module Aspects:

• Accurate,durable and high quality
• 4 pin package
• Ultra low power
• No additional components
• Excellent long-term stability
• All calibration,digital output
• Completely interchangeable
• Long distance signal transmission
• Relative humidity and temperature measurement

Technical Specifications:

• Power: 3.3-5.2V DC
• HUMI: 0~99.9% RH
• TEMP: -40 ~ 80℃
• Precision: ±3% RH,  ±0.5 ℃
• Output: Digital (1 wire)
• Dimension: 60 x 27 x 14mm(L*W*H)

Package Includes:

• 1 x DHT21 / AM2301 Capacitive Digital Temperature And Humidity Sensor Module
