BMP0180 Atmospheric Pressure Sensor

BMP0180 Atmospheric Pressure Sensor in Pakistan

Specifications and Features:

• 1.8V to 3.6V Supply Voltage
• Low power consumption – 0.5uA at 1Hz
• I2C interface
• Max I2C Speed: 3.5Mhz
• Very low noise – up to 0.02hPa (17cm)
• Fully calibrated
• Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
• Size: 13mm x 10mm

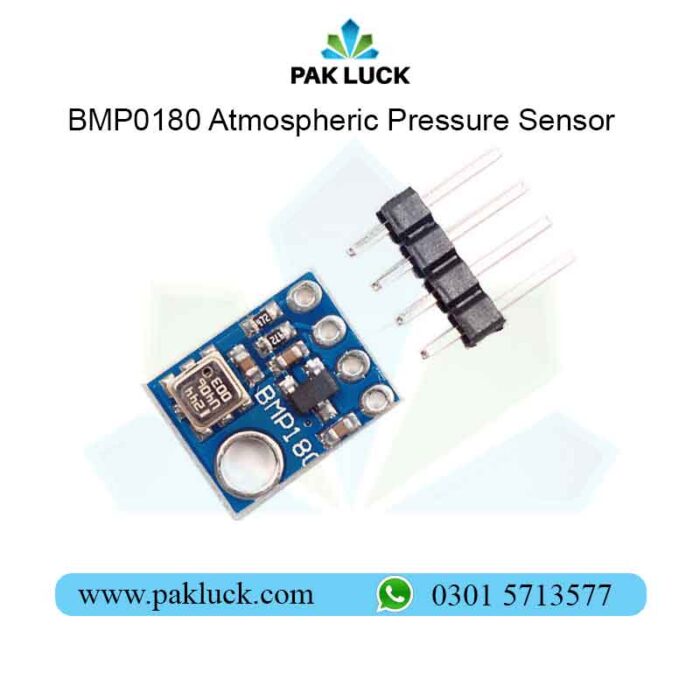

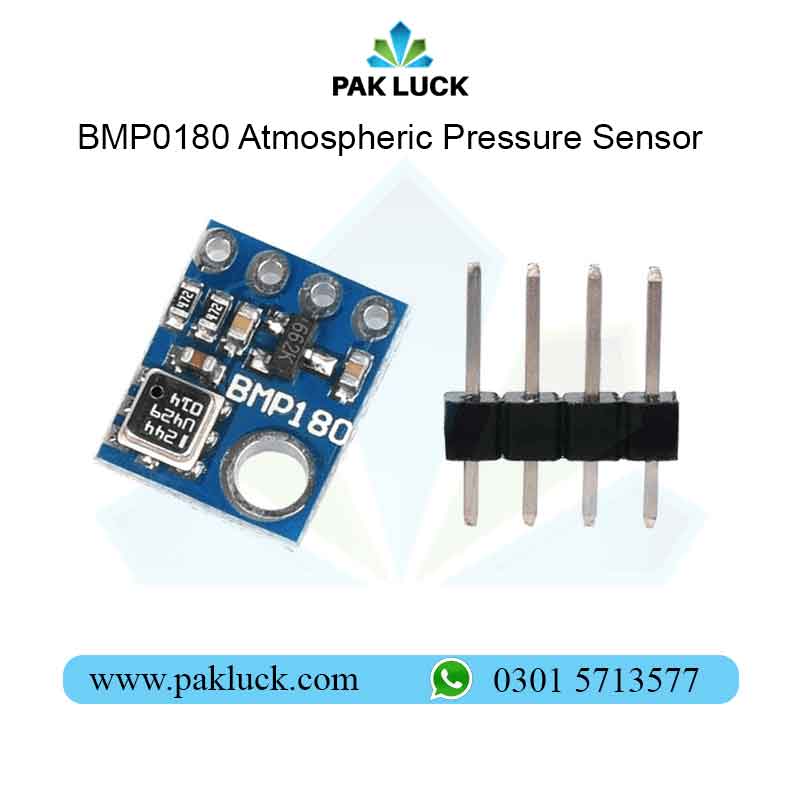

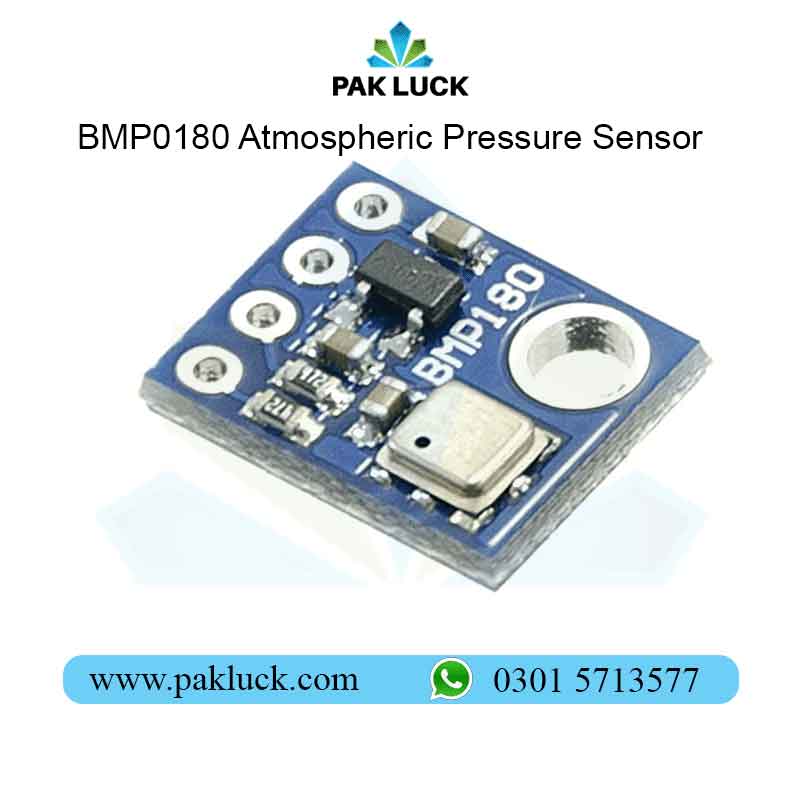

This BMP180 sensor contains piezo-resistive technology and this technology is used for high accuracy, ruggedness, and long term stability. BMP180 Barometric Pressure/Temperature/Altitude Sensor comes with factory-calibrated and with the calibration coefficient already stored in ROM. This sensor contains BMP085 which makes it more effective. This breadboard-friendly BMP180 board breaks out every pin to a 5pin 0.1” pitch header. VCC pin operates from 1.8V to 3.6V. I/O pins tolerate almost 5V. we can run this sensor on 3.3V. Here analog and digital supplies are attached to a single header pin. But these supplies are separately decoupled. These pins are connected to a microcontroller through the I2C bus. Get all types of sensors, modules, and meters at pakluck.com.

Package Includes:

• 1 x Arduino BMP180 Barometric Pressure Sensor

Document:

BMP180 Barometric Pressure Sensor
