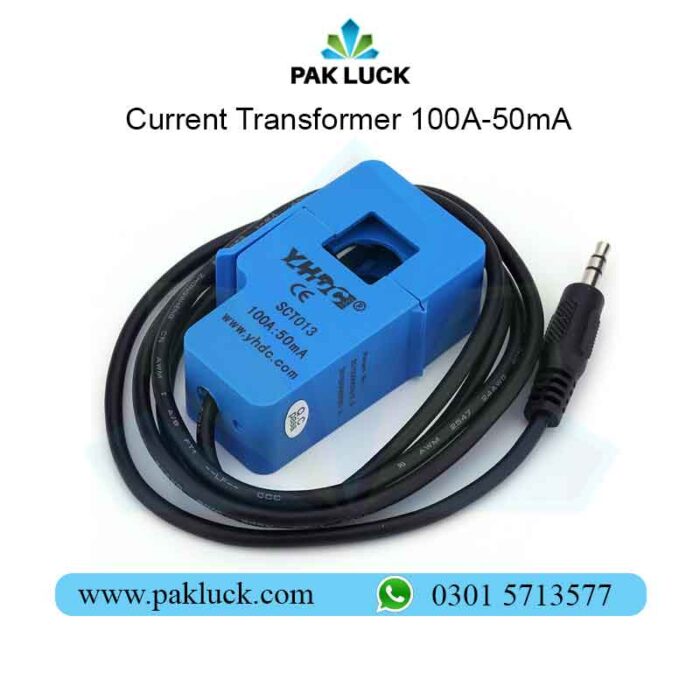

Current Transformer 100A 50mA in Pakistan
Current Transformer 100A-50mA are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).The split core type such as the CT is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
SPECIFICATIONS:
- Input Current: 0~100A AC
- Output Mode: 0~50mA
- Non-linearity: ±3%
- Turn Ratio: 100A:0.05A
- Resistance Grade: Grade B
- Work Temperature: -25°C ~ ﹢70°C
- Dielectric Strength(between shell and output): 1000V AC/1min 5mA
- Leading Wire in Length: 1m
- Size: 13mm x 13mm
| Weight (KG) | 0.020000 |
|---|---|
| Manufacturer | Made in China |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Output Voltage | NA |
| Power | NA |
| Input Current | 0~100A AC |
| Current (A) | 0~50m |
| Turn Ratio | 100A:0.05A |
| Frequency | NA |
| Temperature Range (Min) | -25°C |
| Temperature Range (Max) | 70°C |
| Baud Rate | NA |
| Size (mm) | 13 x 13 |
RELATED DOCUMENTS:
APPLICATIONS:
- Home Automation and Control applications where Current measurement is needed.
- Suitable for the current measuring
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
- Current Transformer 100A-50mA
PACKAGE INCLUDES:
- 1 X YHDC Non-invasive Current Transformer SCT-013-000 (100A )
